LX3 |
|||||||
Outside size |
7000×5200×3400mm(L×W×H) |
||||||
Inside size |
6900×3900×2650mm(L×W×H) |
||||||

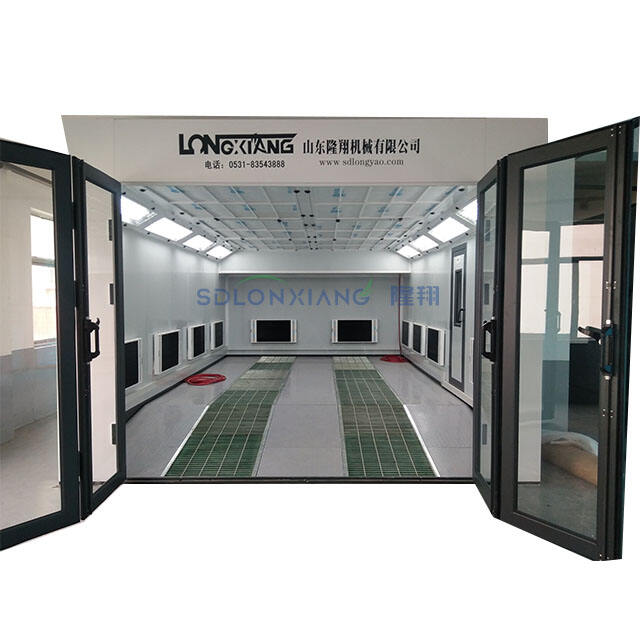

Entrance door |
3 folds, 3000x2600 mm(W×H), bending steel door |
||||||
Emergency door |
650*2000mm(W*H), equipped with handle lock |
||||||
Cabin system
|
Wall panel
|
--Sandwich style EPS 50mm, 0.4mm thick steel, anti-flame and heat- insulation. --High quality galvanized steel roof panel. |
|||||
Basement |

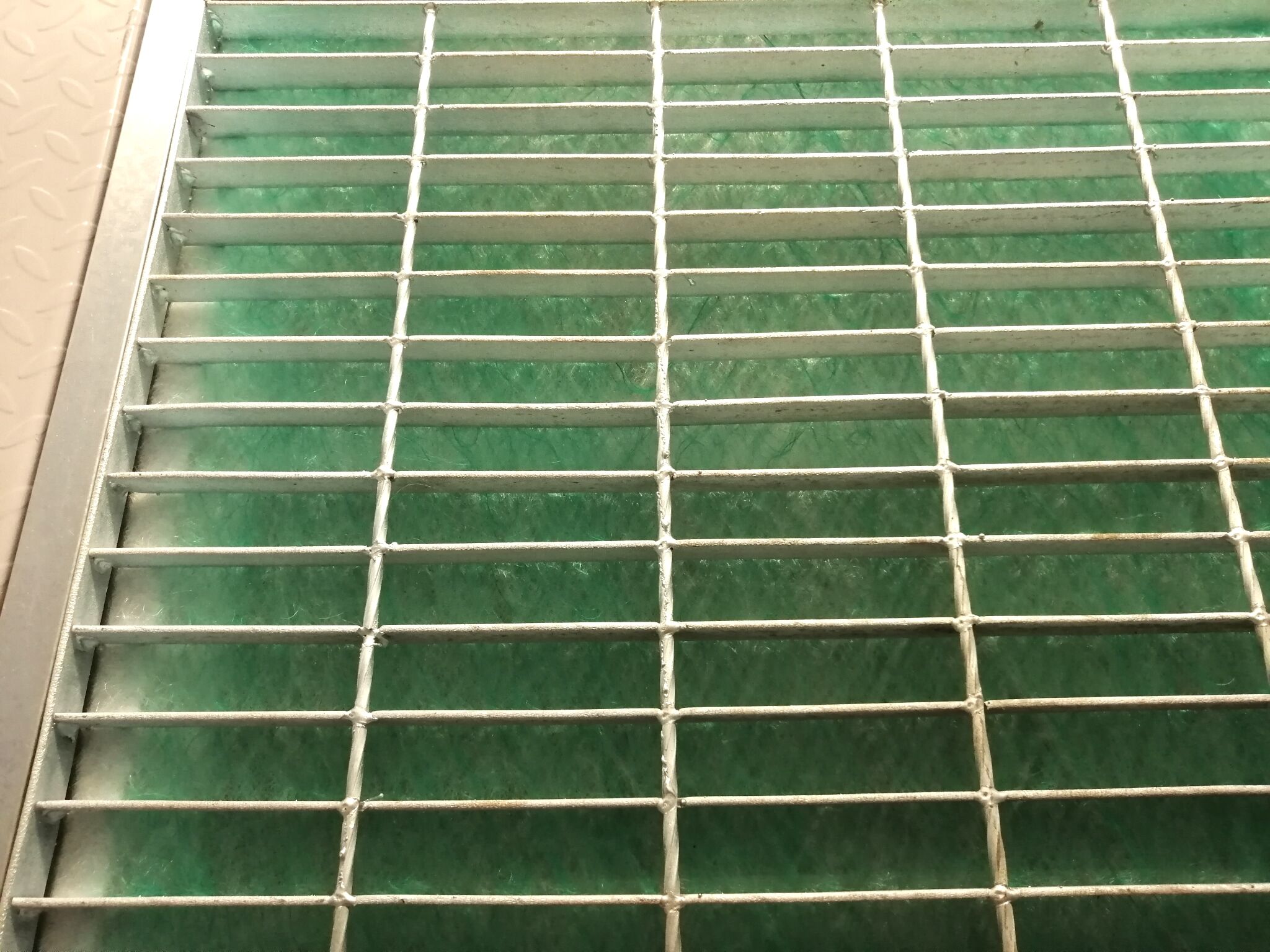

--Galvanized steel assemble, 280 mm high, quadrate steel support, 3 rows of grills, 2 rows of indented plates. --2 ramps, external setting, 620*2000mm(W*L)/pc
|
||||||
Ventilation system |

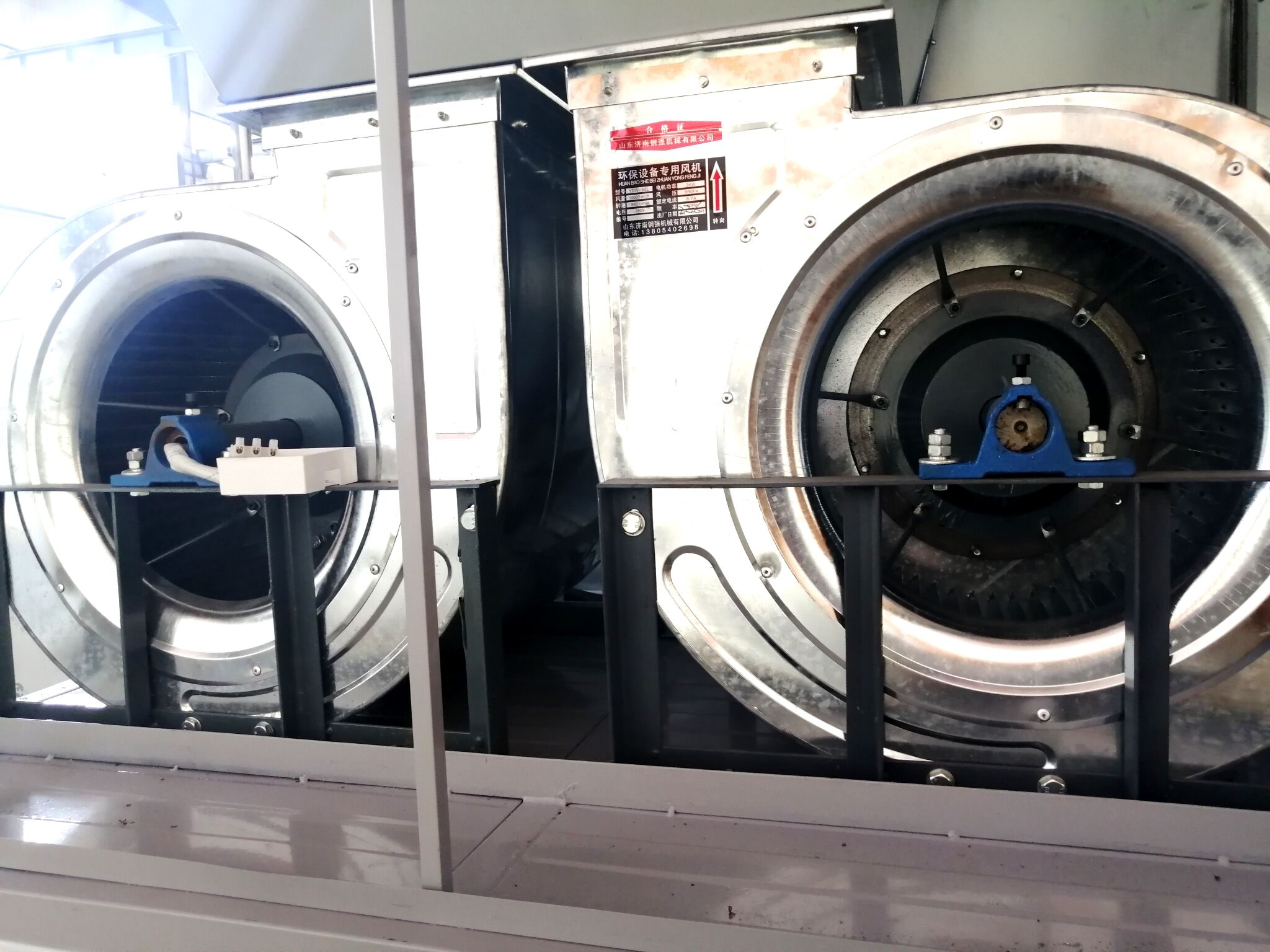

Inlet fan |
2*3kw double-intake centrifugal fans, air capacity:10000m³/h for each set |
|||||
Outlet fan |
1*5.5kw double-intake centrifugal fans, air capacity:15000m³/h for each set |
||||||
Cabinet setting |
--Intake air from side upper, adopt powder quadrate steel frame, strong and beautiful. --Cabinet for the fan*1unit, air duct * 2 units. --Elbow: 90°*1 unit. |
||||||
Heating system |
Burner |
Italy RIELLO G10 oil burner, heating capacity: 100000Kcal/h, heating time:6-8 min(20-60℃), fuel consumption is 5-8kg/vehicle, with pneumatic damper |
|||||
Heat Exchanger |
1.2mm thickness SUS304 stainless steel |
||||||
Cabinet |
Rock-wool insulation*1 unit |
||||||
Lighting system |
Ceiling lights |
8units*4pieces*16w LED Lighting |
|||||
Side lights |
8*2pcs*16w LED lighting |
||||||
Filtering system
|
Primary filter |
Grade G2 plate type , filtering rate＞83% |
|||||
Ceiling filter |

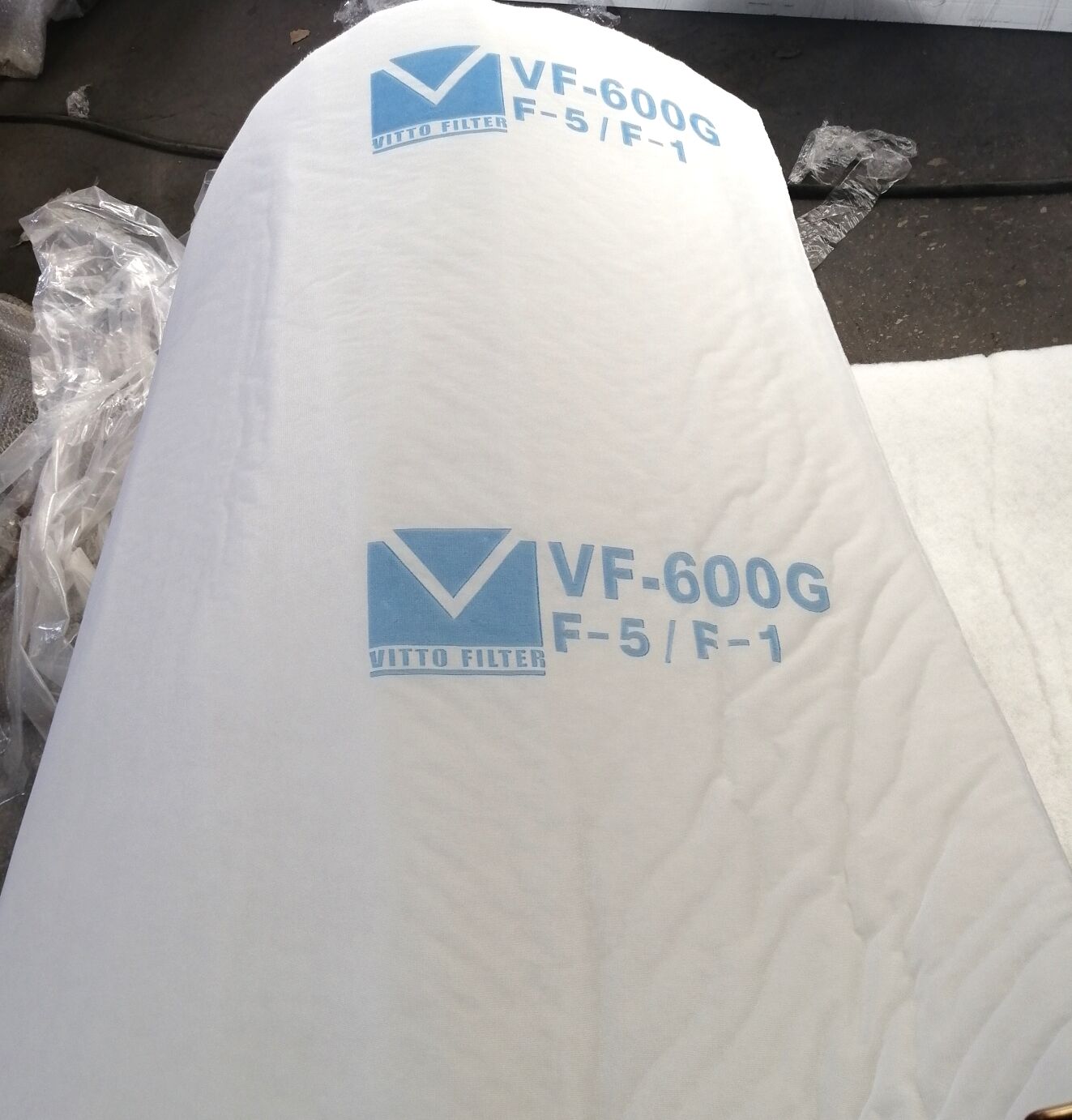

EU5 grade high efficient filter, filtering rate＞98% |
||||||

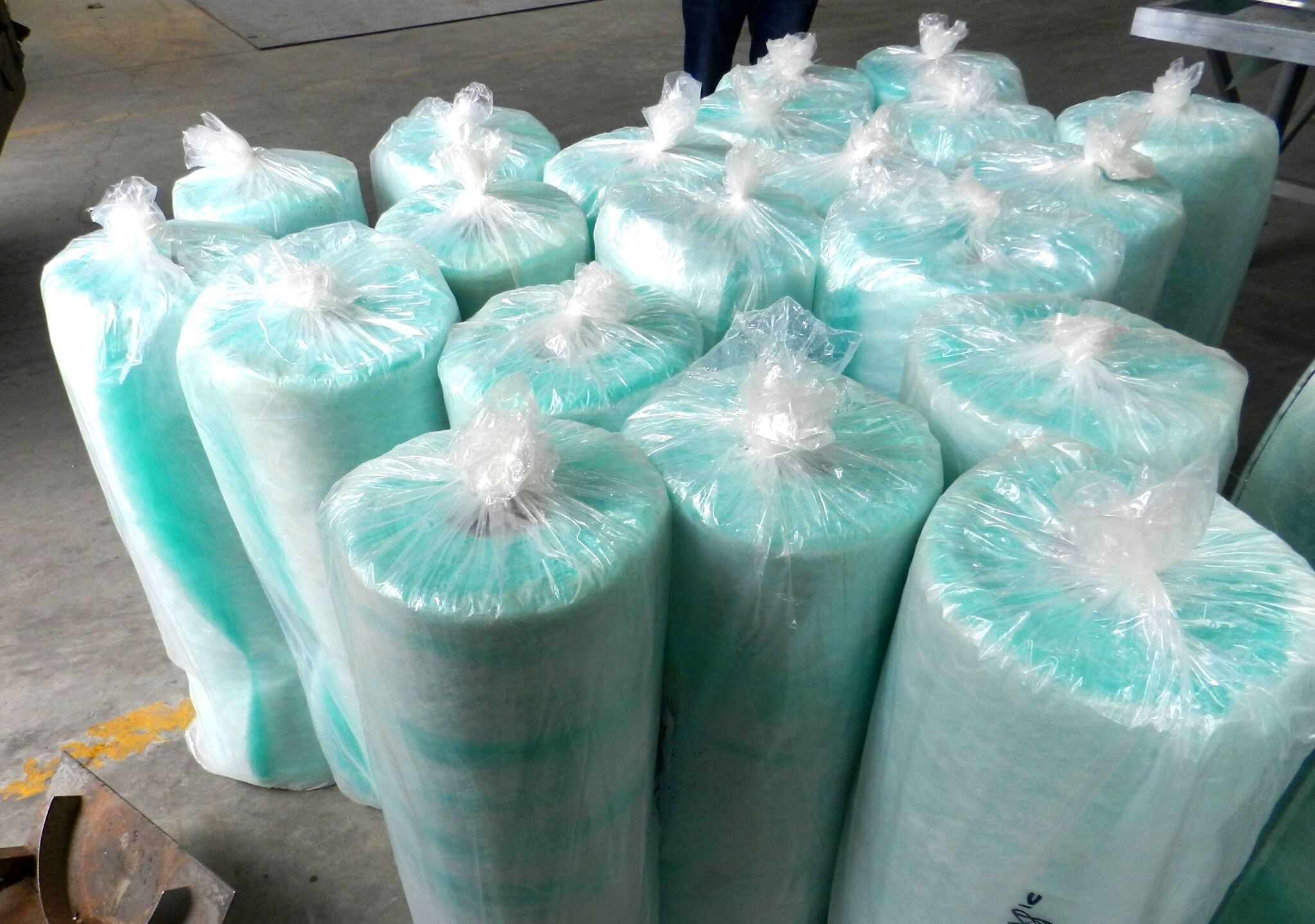

Floor filter |
Multi-layer fiberglass filter, filtering rate＞70% |
||||||
Control system
|

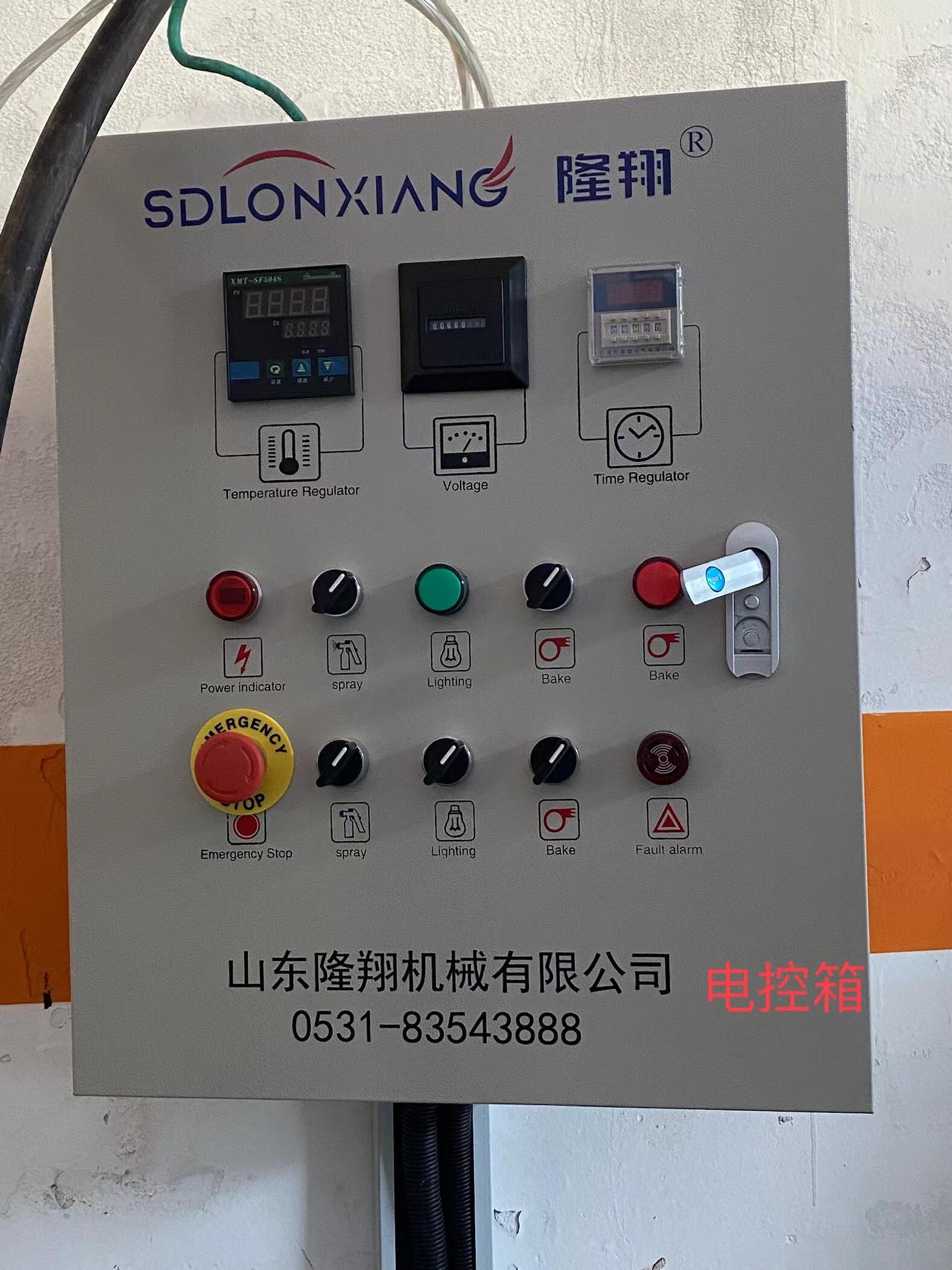

Control panel |
Intelligent control system |
|||||
Function |
Lighting, temperature time setting, painting, constant temperature painting, baking, emergency stop, failure indication, etc |
||||||
Total power |
12.2 KW |
||||||
Voltage/frequency |
380V, 50HZ, 3phase |
||||||
Who are we?
We are based in Shandong, China, starting from 2008. Our primary markets include the Domestic Market (27.00%), Southeast Asia (20.00%), Africa (17.00%), Mid East (10.00%), Eastern Asia (5.00%), Oceania (5.00%), South Asia (3.00%), Eastern Europe (3.00%), North America (2.00%), South America (2.00%), Western Europe (2.00%), Central America (2.00%), Southern Europe (1.00%), and Northern Europe (1.00%). There are a total of about 51-100 people in our office.
How can we guarantee quality?
We ensure quality through a pre-production sample before mass production and a final inspection before shipment.
What can you buy from us?
We offer a wide range of products including Spray Booths, Furniture Spray Booths, Prep-stations, Truck Spray Booths, Water Curtain Spray Booths, Car Lifts, Car Benches, Powder Coating Ovens, Powder Coating Machines, Dust Collectors, Air Compressors, and Wheel Balancers.
Why should you buy from us instead of other suppliers?
With a decade of experience focusing on spray booth design and production, we have exported to over 40 countries worldwide.
What services can we provide?
We accept various delivery terms including FOB, CFR, CIF, EXW, and CIP. Our accepted payment currencies are USD, EUR, JPY, AUD, and CNY, and we support payment types such as T/T, L/C, Western Union, Cash, and Escrow. We are proficient in both English and Chinese languages.

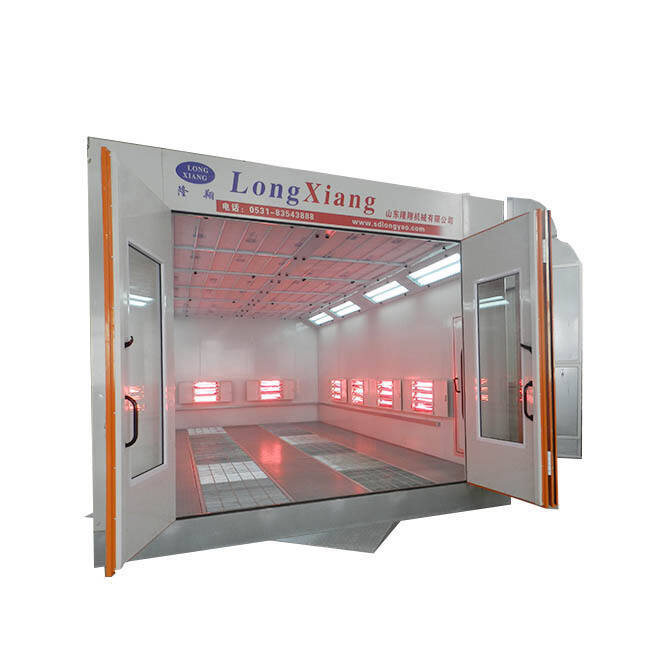

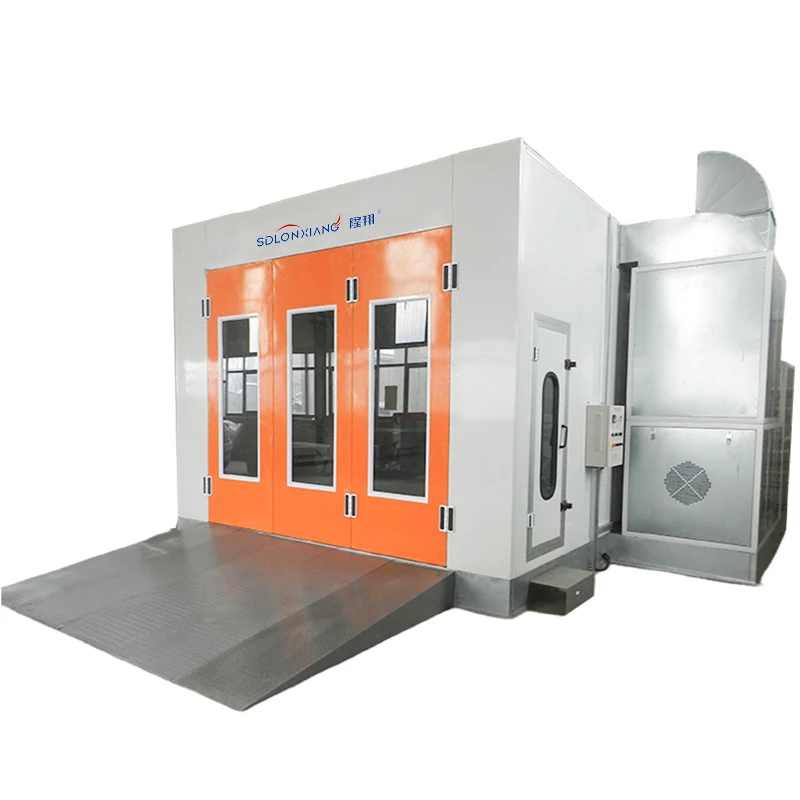

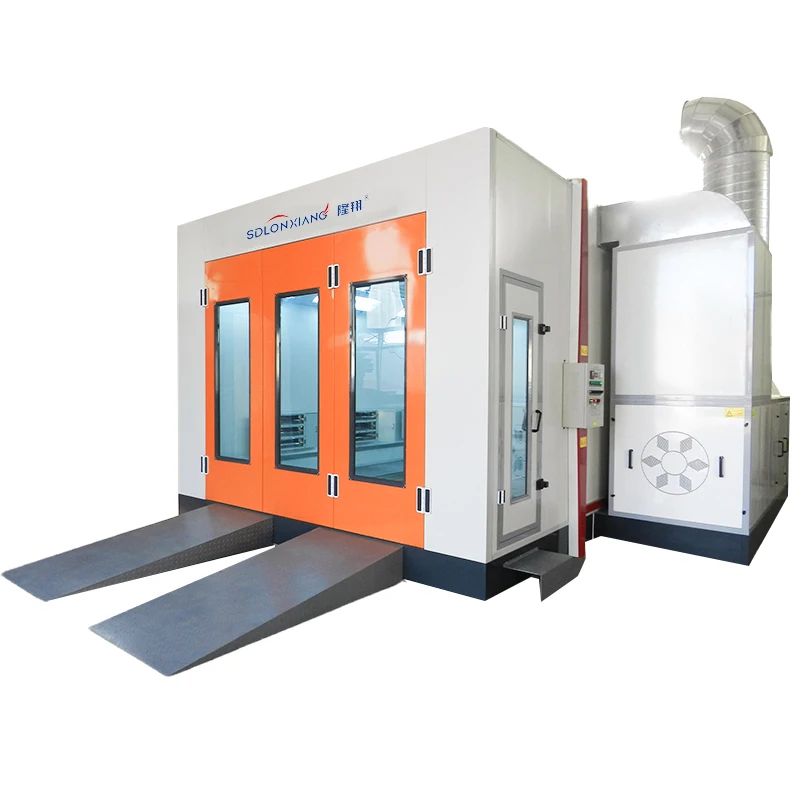

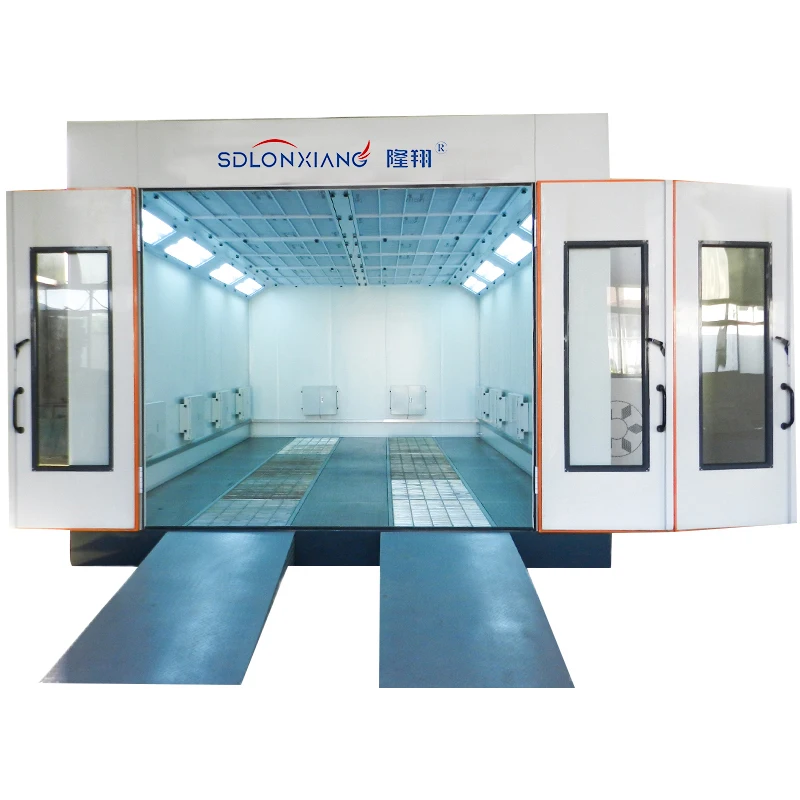

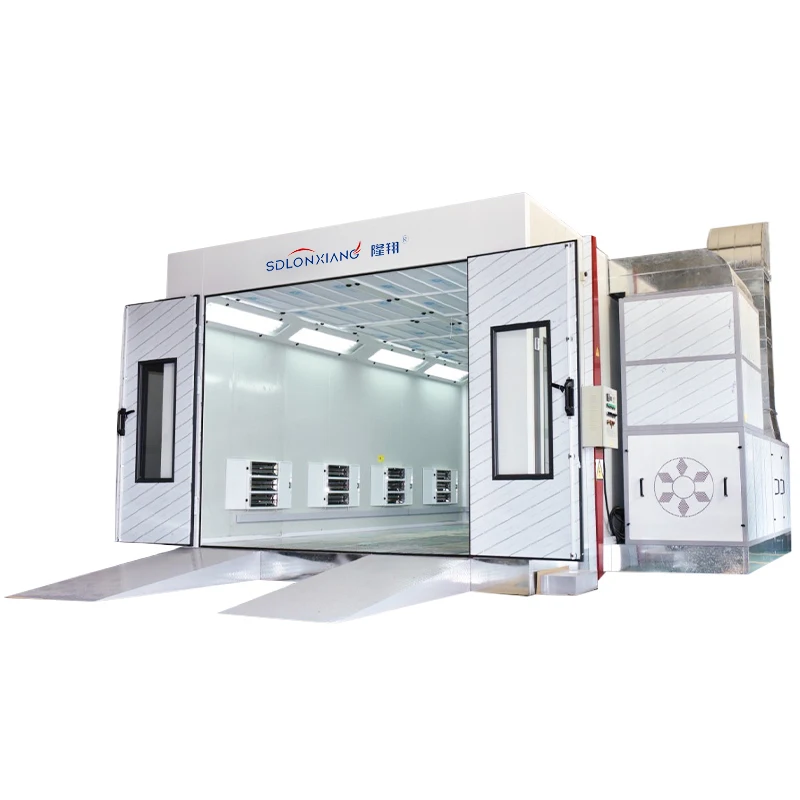

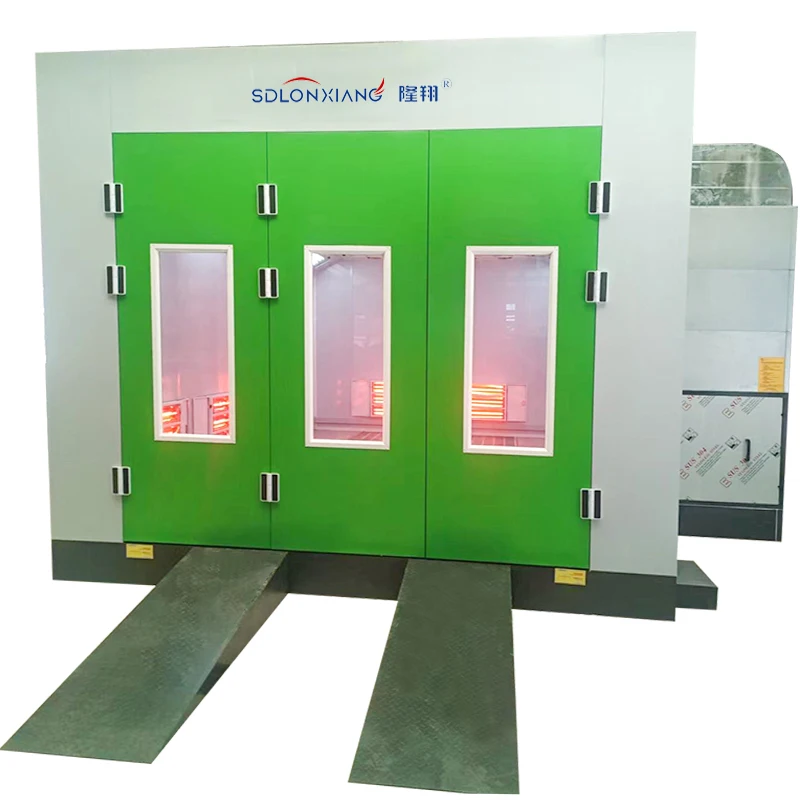

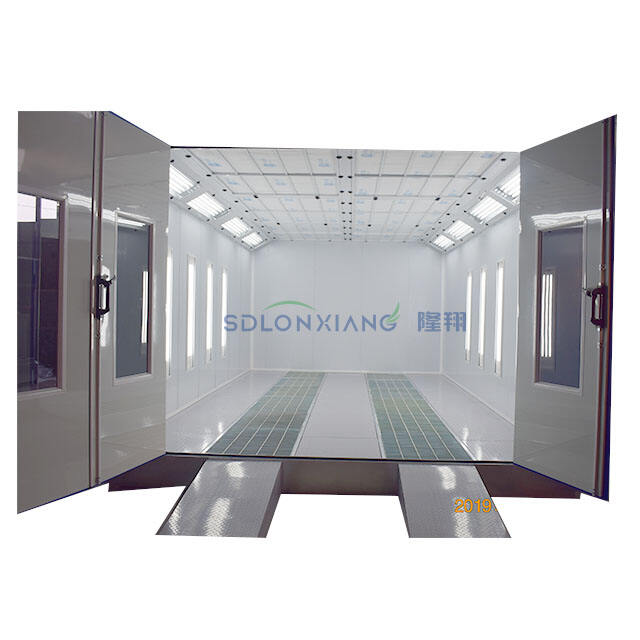

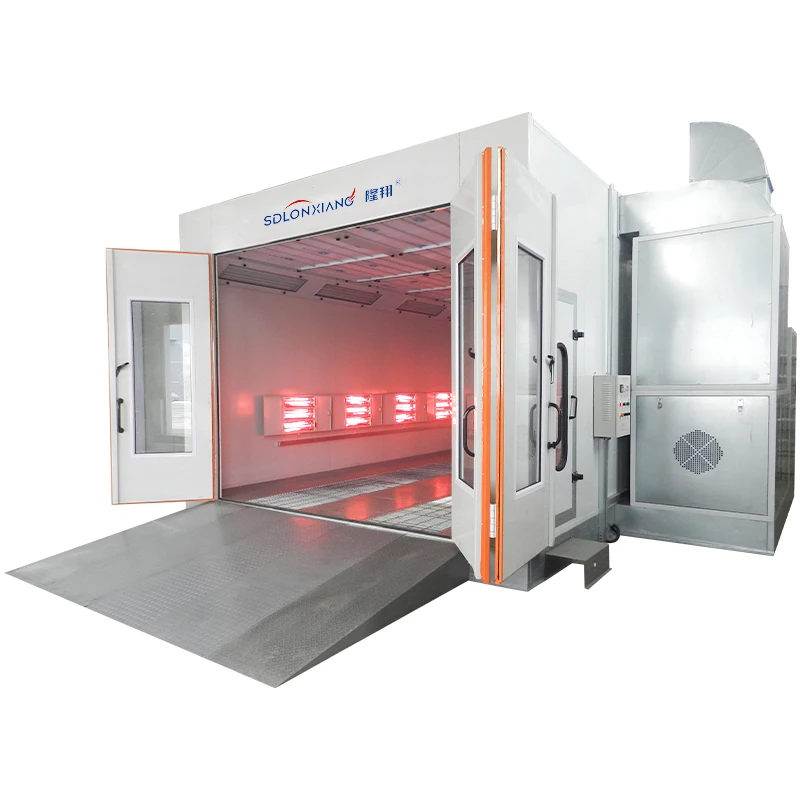

Introducing the 2023 New Style Customized Color And Size Car Cleaning Automotive Paint Spray Booths from Longxiang. These spray booths will be the method perfect in maintain your car or truck looking new and vibrant for a long time come. With tailored size and color solutions, you are able to ensure that the spray booth fits the design and feel of one's garage or workshop.
The Longxiang brand is well-known for its high-quality automotive products this 2023 New Style Customized Color And Size Car Cleaning Automotive Paint Spray Booths isn't any exception. Made out of durable materials, it truly is designed to handle both small and automobiles being large ease. The spray booth normally fashioned with more impressive range technology that provides results that are effective.
Cleaning your vehicle hasn't been easier due to the Longxiang 2023 New Style Customized Color And Size Car Cleaning Automotive Paint Spray Booths. It is really built by having an air powerful flow that eliminates all contaminants, making certain your car or truck is neat and free of dirt and debris. The spray booth comes with a user-friendly control that allows you to definitely adjust the technique of operation and set the required temperature.
What sets the Longxiang 2023 New Style Customized Color And Size Car Cleaning Automotive Paint Spray Booths apart is its customization options. You can pick from a wide range of colors, sizes, and options, making sure you're getting this ideal product your requirements and preferences. This spray booth was created to accommodate all sorts of automobiles whether you do have a tiny car or a large truck.
The Longxiang 2023 New Style Customized Color And Size Car Cleaning Automotive Paint Spray Booths looks great in just about any storage or workshop with a sleek and modern design. The high-quality materials and advanced technology with its construction allow it to be outstanding investment for anybody who would like to keep their vehicle appearing like new for years to come.
